23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

Product Categories
Shenzhen Qunmao Display Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

Brand Name : Qteboard

Model Number : Digital Menu Board

MOQ : 1

Payment Terms : T/T

Delivery Time : 5 - 10 days

Size : 8 inch

Warranty : 1 Year

Max resolution : 800*1280

Color : white/black

Contact Now

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
About Qtenboard

Qtenboard - The Top Hardware Supplier for Digital Menu Board in China

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Dual Manufacturing Bases in Shenzhen & Guangzhou

Qtenboard operates two modern production facilities in Shenzhen and Guangzhou, ensuring consistent quality control, stable supply capacity, and flexible large-scale production.

  • Over 300,000 m² of integrated manufacturing space
  • Automated and semi-automated production lines
  • Daily production capacity of up to 200 units
  • 48-hour continuous aging and stability testing
  • Global Compliance & Certifications - CE * FCC * RoHS * PSE * UL (optional)
  • Flexible OEM / ODM Manufacturing Support
Core Features
23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Compact Desktop Design

Fits neatly on tables without affecting dining space or table turnover.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
High-Definition Display

HD LCD screen with vivid colors and balanced brightness, making food images more attractive and appetizing.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Images & Video Menus

Display dish photos, short food videos, combo recommendations, and promotional content to drive upselling.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Self-Ordering

Minimizes manual order-taking and keeps operations smooth, even during peak hours.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

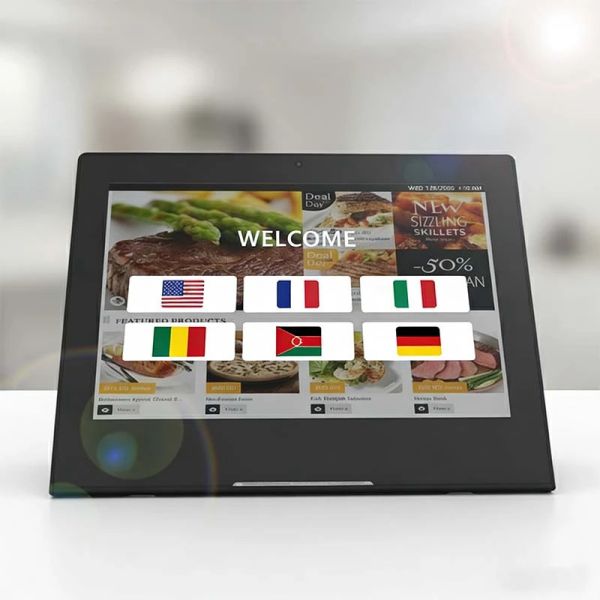

Multi-Language Support

Easy language switching, ideal for tourist areas, airports, and international restaurant chains.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

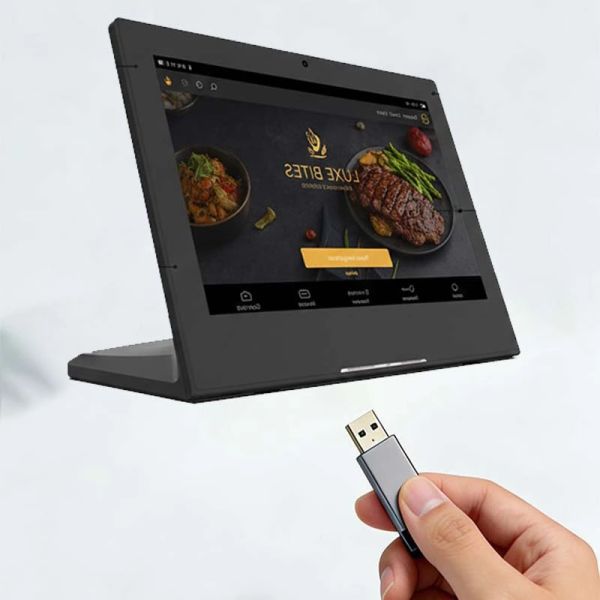

Plug-and-Play Deployment

Ready to use out of the box, perfect for fast rollout and easy replication across chain stores.

Product Highlights
23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Split-Screen Display

Display multiple content sections on one screen, such as menu items, promotions, and recommendations, all at the same time.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
POS & Ordering System Integration

Compatible with mainstream POS and ordering systems for order synchronization and data analysis.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Offline & Online Playback Modes

Continues displaying menu content even during network interruptions, ensuring uninterrupted business.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Responsive Touch

Highly responsive touch interface with intuitive operation suitable for all age groups.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants

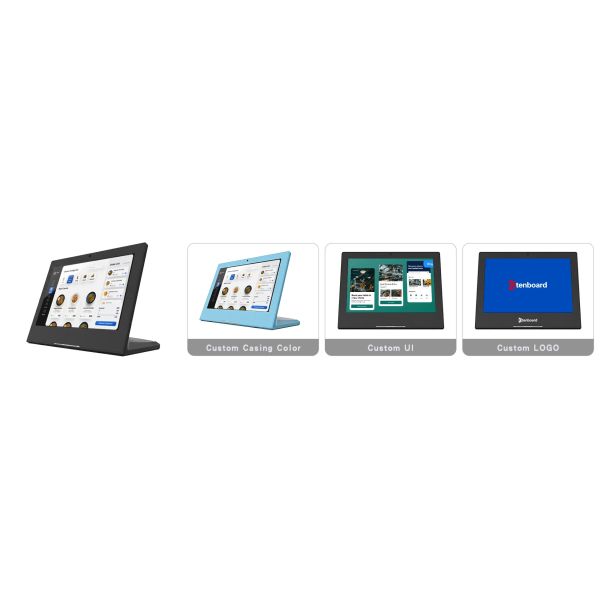

OEM & Appearance Customization

Customizable logo, UI style, and boot screen to match brand identity and chain standards.

Centralized CMS Management

Easily manage all menus remotely, arrange contents, support rich media, control multiple locations, and ensure smooth playback.

OEM Options
Resolution 2K, 4K
Chip 352, 3566, 3576, 3588
Optional Touch Capacitive Touch, Infrared Touch, No Touch
Interface HDMI IN, USB, LAN 1000/100, SD/TF, 4G
System Android 9, Android 11, Android 14, Android 16, Windows 10/11/pro
Technical WIFI 5, WIFI 6, Bluetooth 5.4
Size 21.5", 23.8", 27"
Technical Specifications

The following technical parameters are based on a 23.8-inch QM-2428MB model. If you need technical parameters for other sizes, please contact Qtenboard.

Display Parameters
BrandQtenboard
ModelQM-2428MB
Screen Size23.8 inch
Resolution1920*1080 (2K); 3840*2160 (4K)
Angle of View178°
Contrast Ratio3000:1 / 4500:1
Display Rate16:9 / 9:16
Back LightLED
Brightness≥300 / 400 / 500 cd/㎡
Refresh Rate60 / 120 HZ
Color16.7M (8-bit) / 1.07B (10-bit)
System Configuration
Operation SystemAndroid
Version9.0 / 11.0 / 13.0 / 14.0 / 16.0
CPUQuad core A53, Main frequency up to 1.9GHz
GPUMali T450
RAM1 / 2 / 4 / 8 GB
Storage Memory8 / 16 / 32 / 64 / 128 GB
InterfaceHDMI In*1, USB2.0*2, TF card*1, RJ45*1
Audio Interface3.5mm *1
Network1pc, 10M/100M/1000M Adaptive Ethernet
WIFI & BluetoothBuilt in WIFI (2.4G/5G single-signal) & BT 4.2 / 5.0 / 5.4
3G/4GOptional
System Function
Decoding CapabilitySupports 2/4K video and picture decoding and playback
Software ApplicationSupport to install third-party software
LanguageEnglish and other languages
Boot AnimationSupport to customize
Infrared Remote ControlOperate system by remote control
Audio FunctionSupport left/right channel output, built-in double 8Ω power amplifier
Power-on/offRemote control/timing/network wake-up/self-start
System AuthorizationAllow root permission and customize software development
Mouse ModeSupport wired/wireless mouse or use keyboard
System UpdateSupport local and remote upgrade
Play ModeAudio: MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP etc.
Picture: JPG, BMP, PNG etc.
Video: AVI, rm, rmvb, MKV, WMV, MOV, MP4 etc.
TypingStandard Android keyboard as default, can install third party typing
More FunctionsFollow instruction manual/video or contact supplier
Software Function (CMS Optional)
Background SupportWeb/mobile IE (local network/WAN)
Play ModeNetworking/standalone
Play SupportVideo/picture/subtitles/PPT/web/weather/clock etc. mixture to play
Smart SplicingSupport custom playing modes to splice as setting
Timing FunctionSupport to set playing custom program in time period
Terminal AdministrationAdministrator can create and modify account for level-to-level administration
More FunctionFollow instruction manual/video or contact supplier
Machine Parameters
ColorBlack / White / Others
Frame MaterialAluminum (oxidized wire drawing)
Body MaterialMetal cold rolled steel plate (metal coating)
Surface Material3mm tempered glass (physical)
Packing MaterialNeutral carton / Wooden frame / Wooden box
Install WaysMount-on wall/Embedding/Hang/Bracket
Electrical Features
ScenariosIndoor
Rated VoltageAC110-220V
Stand by Power≦0.5W
Rated Power≦80W
Suitable EnvironmentTemperature: 0℃~55℃ / Humidity: 10%RH~90%RH
Storage EnvironmentTemperature: -5℃~60℃ / Humidity: 10%RH~90%RH

* Technical parameters above are for the 23.8-inch QM-2428MB reference model. For detailed specs of other sizes please contact Qtenboard.

Applications
23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Restaurants & Diners

Ideal for displaying digital menus and featured dishes.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Shopping Malls & Food Courts

Perfect for promoting limited-time offers and set meals.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Hotels & Cafes

Well-suited for presenting menus, promotions, and brand visuals.

OEM/ODM Customization Capabilities
FeatureDescription
Brand Logo & Boot AnimationPersonalize your product with custom logos and startup animations for full brand identity.
UI/OS Deep CustomizationTailor system interface, themes, and functionality to match your brand's unique requirements.
Chassis & Mold ModificationModify device enclosures or design new molds for differentiated product appearance.
Packaging DesignCustom packaging to suit your branding and global shipping needs.
SN Tracking & Batch ProductionEach unit tracked with a unique serial number to ensure quality and manage after-sales efficiently.
White Label ServicesOffer products ready to market under your own brand name.
CKD/SKD Supply CapabilityFlexible shipment options: complete, semi-knocked down, or fully assembled units.
Software Development & SDK/API SupportIntegrate third-party applications or develop proprietary software to meet specific project needs.
Factory Overview
23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Factory Entrance

Modern and spacious facility designed for high-efficiency production.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Production Line

Fully automated assembly lines for consistent quality output.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Quality Control

Rigorous testing ensures reliable products for global clients.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Warehouse & Logistics

Organized storage and efficient shipping for worldwide distribution.

Global Cases
23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
USA - Hotel Lobbies & Concierge Desks

Display dining menus and guest information in high-traffic areas.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
France - Bakeries & Patisseries

Highlight daily fresh pastries and limited-time creations dynamically.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Germany - Airports & Transportation Hubs

Present food options, schedules, and service updates in real time.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
UK - Bars & Lounges

Feature cocktail menus, happy hour specials, and events visually.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
Italy - Fine Dining Restaurants

Showcase gourmet dishes and wine pairings elegantly.

23.8 Inch Digital Menu Board with Split Screen and Video Playback for Restaurants
South Korea - Bakeries & Dessert Shops

Highlight specialty cakes, drinks, and limited editions.

End-to-End Support for Global Brand Partners

Qtenboard provides a complete pre-sales and after-sales service system, ensuring stable long-term cooperation and smooth project delivery for international brands and distributors.

Pre-Sales Support
  • Dedicated Account Manager - One-on-one project follow-up, requirement analysis, and solution recommendation.
  • Technical Consultation - Professional guidance on product selection, system configuration, and compatibility.
  • Sample & Testing Support - Rapid sample delivery, testing assistance, and certification guidance.
After-Sales Support
  • 24/7 Technical Support - Fast-response global support through email, WhatsApp, and online platform.
  • Remote Technical Assistance - Firmware debugging, CMS configuration support, and remote troubleshooting.
  • SN Tracking & Batch Management - Each unit is registered for traceability, warranty tracking, and issue diagnosis.
  • System Remote Upgrade (OTA) - Real-time firmware updates and feature enhancements via cloud.
  • Spare Parts Stock & Quick Replacement - Sufficient inventory prepared to ensure timely shipment and maintenance.
  • Global Shipping & Logistics Experience - Expertise in packaging, export documentation, and long-distance transportation for digital signage.
Frequently Asked Questions
What content formats does the digital menu board support?
It supports images, videos, animations, and GIFs for dynamic and engaging menu displays.
Can I update menus remotely?
Yes, prices, dishes, and promotions can be updated instantly via a centralized CMS from anywhere.
Does it work if the internet goes down?
Absolutely. The menu board supports offline playback to ensure menus are always displayed.
Can it manage multiple locations?
Yes, one CMS system can control menus across multiple stores, making chain management simple.
